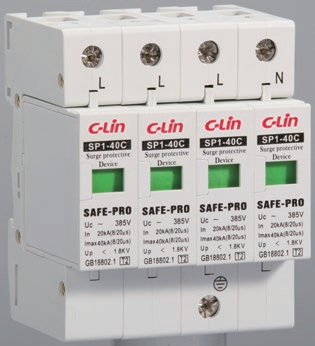

230V 400V Voltage Surge Protectors 60kA 3 Phase Surge Protector

Product Categories

Sichuan Jinhuili Electric Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : JHL

Model Number : 10KA 20KA 40KA 60kA 80kA 100kA 120KA 160KA

Certification : CCC

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/YEAR

Delivery Time : 30work days

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product name : Control Cabinet Accessories

Contact Now

key parameter

Protection Level : Level 1,2,3Protection

Rated operating voltage (Un) :230V/400V

Nominal discharge current In(8/20μs): 15KA 20KA 30kA 40kA 60kA

Max discharge current Imax(8/20μs) :10KA 20KA 40KA 60kA 80kA 100kA 120KA 160KA

Maximum continuous operating voltage (Uc) :320V 385V 420V 440V 320V 385V 440V 320V 385V 420V 440V 320V 385V 420V 440V

Protection level (Up)kV :< 2.0 < 2.2 < 2.2 < 2.4 < 2.2 < 2.5 < 2.5 < 2.7 < 2.5 < 3.0 < 3.2

The surge protector is suitable for TT, IT, TN-S, TN-C, TN-C-S and other power supply systems with AC 50/60Hz, 230/400V and below.

It is usually installed in the low-voltage main distribution cabinet of the building inlet line.

The product complies with: GB/T 18802.1 GB/T 18802.12 standard

230V 400V Voltage Surge Protectors 60kA 3 Phase Surge Protector

Product Tags:

230V Voltage surge protectors
